Instructions

Bit Manipulation Instructions

and, or, not, xor ,nor are bit-wise operations. testb performs AND operation, discards the result and keeps the flags set.
xor the register with itself to make it 0. This does not set the flag.
lzcntq counts the number of leading zeroes
bsfq (bit scan forward) scans for the first set bit (from bit 0) and stores the index in the target register. If no set bits, the result is undefined and zero flag is set.
bsrq (bit scan reverse) does the same but from bit 63.
Bits are counted from the least significant to the most significant.
ror (rotate right) and rol (rotate left) registers rotate the register left and right respectively, specified by the number of bits.
xchg exchanges the values of its operands like a mov instruction.
bswap reverses the order of bytes in the destination. There isn’t a 16-bit version, since it can be easily done using xchg: xchg %ax %al
shr shifts a value right by specified number of bits and shl shifts the value left.

Jump Instructions

Used to change the flow of control in a program like loops, conditionals, function calls, etc.
Checkout signed and unsigned jumps under : Signed/Unsigned
Short jump is a jump within 127 bytes of the current instruction.
Near jump is a jump somewhere within the current address space, relative to the instruction pointer using 32 bits. (This is the one that we normally use, where the assembler calculates the address). Due to 32 bits, it is constrained to be within 2 GB.
Far jump is used to jump across segments, but since linux uses the flat memory model, it is no longer used.

These are used by the compiler in different coding models like small code model, medium code model, etc. For more information on the code model refer to : Notes on System V ABI (yet to be uploaded)

Signed/Unsigned

negb/negw/negl/negq can be used to save the negative of the contents stored in the register.
Flags to consider:
- Zero Flag (ZF): Result of the last arithmetic op was zero.
- Overflow Flag (OF): Used to denote signed overflow on any arithmetic op.
- Carry Flag (CF): Used to denote unsigned overflow on any arithmetic op.
- Sign Flag (SF): Used to denote if the result of an arithmetic op is signed. Used to extend the number of bits usable (as opposed to reserving a signed bit).

Signed Jumps

Fig 3.1 - Signed Jumps

Unsigned Jumps

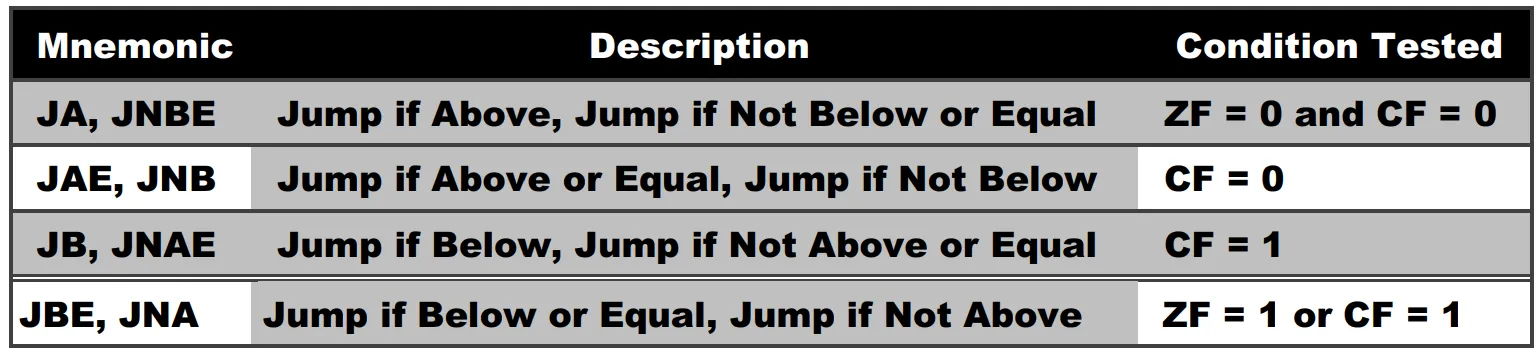

Fig 3.2 - Unsigned Jumps

Arithmetic Instructions

addcq adds two numbers and also considers carry flag, can be used to handle larger numbers (greater than 64-bits).
For multiplication, the overflow can be more than just a bit, so the process uses two registers, the LSB is stored in rax and the remaining is stored in rdx (that’s why it’s called data register). Together they are %rdx:%rax in documentations.
For division, the dividend (the number being divided) is stored in %rdx:%rax and the divisor is the operand. The quotient is stored in %rax and remainder in %rdx . Note: rdx should be zero before carrying out division, otherwise, it will be part of dividend.

System Calls

The kernel takes care not to clobber the registers that the user program uses, except for 3:

%rcx - stores where the next instruction will be when the kernel returns
%r11 - the current values of %eflags are stored in %r11
%rax - the return value of the system call (if any) Hence, these 3 registers must be saved somewhere if you store anything important in them, before making a system call. These are also called caller-saved / call-clobbered registers. Apart from these, rdx , rd8, rd9 and rd10 are also caller-saved registers.

The registers that include the parameters to the syscalls are:

rax : contains the syscall number
rdi , rsi, rdx, r10, r8 and r9 in the same order (1st arg, …)
